ZLJ combined conveyor tape sulfur sulfur connector

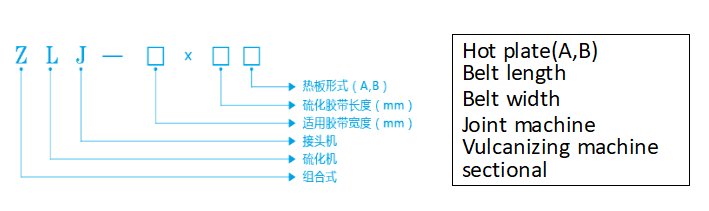

Model and specifications

● In the applicable band width is divided into: 500,650,800,1000,1200,1400,1600,1800, 2000,2200 (mm);
● In the length of the tape joints is divided into: 250,300,350,400,500,600,700,800,830,1200 (mm);
● In thermal plate type divided into: type A-parallel square, 72 ° C; type B rectangular, 90 ° C;
● In the voltage level, it is divided into three voltage levels: 380V, 660V, 1140V;
● Accant configuration requirements can be divided into fast water cooling type and natural cooling type.

Main technical characteristics
● The electric heating type, pressurized method is hydraulic type;
● The applicable working power supply 1140V, 660V, 450V, 415V, 380V, 220V, 50Hz, the working voltage required for foreign customers can be customized;
● Cost the power supply voltage 1140V, 660V, 450V, 415V, 380V, 220V, 50Hz, the working voltage required for foreign customers can be customized;
● On block heating board heating power unit area ≥7000W/m;
● The automatic digital temperature control system, the vulcanization temperature is 0-199 ° C;
● The temperature time: (normal temperature to vulcanize temperature 145 ° C) Not greater than 25min;
● Table vulcanization pressure <2MPa;
● A fully automatic control over the protection of heating, heat preservation, and temperature super limits.

The main technical parameters
(This parameter table is filled in according to the conventional high -intensity aluminum alloy profile. Except for conventional sizes such as 830mm and 1000mm, it is customized by any non -standard size)
