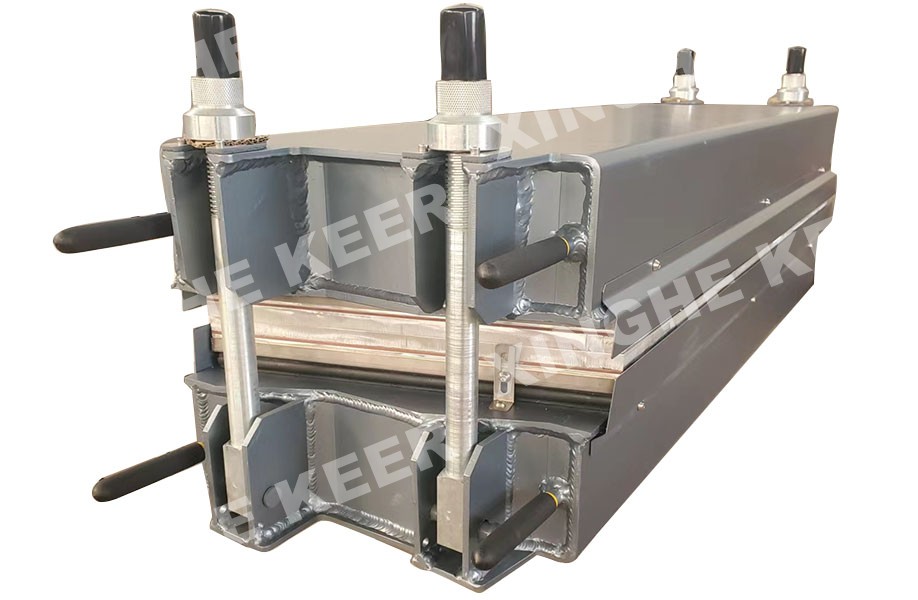

Rubber Conveyor Belt Vulcanizer(also called Conveyor Belt Vulcanization Joint Machine) series products are disassembled, electric heating, small temperature difference of heating plates, new pressure water bag with uniform pressure, light weight, reliable quality, using a new digital control box, long life, good performance. It is suitable for joints and repair of various rubber belt such as canvas, nylon, wire rope core and PVG. Water-cooled joint vulcanization machine is a new type of conveyor belt vulcanization machine, which can better save vulcanization bonding time. As long as there is common water source on the site, after vulcanization, the heating plate can be quickly cooled by water, from the vulcanization temperature to 60℃ in only 20 minutes, is a new, ideal conveyor belt vulcanization joint equipment.
| Function | Conveyor Belt Hot Vulcanization Joint |
| Application | Rubber Belt Splicing |
| Material | Aluminium |
| Pressure | As our experience, normal setting is 0.8Mpa; 1.2Mpa is for EP belts; 1.4Mpa is for steel cord belts. (Max. 1.8Mpa, Adjustable) |
| Heating Way | Flexible Silicone Electric Heating Max. 200℃, Adjustable |
| Vulcanizing Temperature | 145℃ |
| Cooling Way | Built-in Water Circulation Cooling |
| Cooling Time from 145℃ to 75℃ | ≤10minutes |
| Belt Width | 650~3000mm |
| Platen Length | 780~3250mm |
| Bias Angle | 16°, 18°, 20°, 22°, 90° etc. |
| Voltage | 380V, 220V, 380V, 400V, 415V, 440V, 480V, 525V, 660V, etc. 50HZ/60HZ |
| Total Weight | 208~3200KG |
| Price | Negotiable |
| Place of Origin | Qingdao City, China |
| Brand Name | XINGHE KEER |
| Certification | CE, ISO |
| Packaging and Transport Way | Plywood Box by Sea |
| Minimum Order Quantity | 1 Set |
| Supply Capacity | 50 Sets Per Month |
| Payment Terms | T/T |
| Delivery Time | 3 ~4 Weeks |
| Warranty | 12 Months |
Notes:
Before placing an order, please confirm
Conveyor Belt Max. Width;
Splice Length;
Bias Angle;
Vulcanization Pressure;
Local Working Voltage.
● We test running the vulcanizers before delivery to find out any potential fault.
● We can record videos in English to provide sales and after-sales services.
● We offer OEM service. Your logo can be printed on conveyor belt vulcanizers.
A=Length of Platen Along the Belt
B=Width of Platen Across the Belt on the Bias
C=Right Angle Dimension across the Belt, Plus Edge Overlap
D=Bias Angle (0°/18°/20°/22° etc.)
E=Max Splice Length
We offer an extensive range of conveyor belt vulcanization joint machine, conveyor belt repair machine & electric pickling machine that are perfectly suited for a variety of mining machine operating environments
